Rotational Molding Design Guidelines

Understanding the Fundamentals of Rotational Molding Design

For B2B procurement professionals, understanding the basics of rotational molding design is crucial. This process involves heating plastic resin in a mold that rotates along two perpendicular axes, ensuring even distribution and formation of the desired shape. Key considerations include:

• Material Selection: Choosing the right type of plastic resin for durability and performance.

• Mold Design: Ensuring the mold is designed for uniform wall thickness and ease of part removal.

• Cooling Time: Proper cooling to avoid warping and ensure structural integrity.

• Cost Efficiency: Rotational molding is cost-effective for producing large, complex parts, such as water storage tanks, plastic climbing frame, automobile fuel tanks, rotomolding fuel tank and industrial containers, with minimal waste.

The Devil is in the Details – Key Design Considerations for Rotomolding

When it comes to rotomolding, precision is paramount. Key design considerations include:

• Draft Angles: Facilitating easy removal of the part from the mold.

• Wall Thickness: Ensuring uniformity for structural integrity.

• Ribs and Bosses: Adding strength and support to the final product.

• Venting: Preventing air pockets and ensuring a smooth finish. By paying attention to these details, rotational mould factory can achieve superior results and minimize production issues.

Key Points of Rotomolding Design:

1. Does the design include deeper side depressions in the direction of product ejection? If so, they must be designed outside or as active inserts, which will increase the mold cost. Because of the shrinkage of plastic, some small depressions can be ignored. But it is necessary to know how large the depression is without the need for additional molds.

2. How many mold pieces are there. Standard molds have two pieces, but if the design of roto moulded products is more complex, more molds may be required. This will affect the cost of the mold, mold maintenance and the unit cost of the plastic product.

3. What kind of surface treatment does the product require, whether it is cast on the surface of the mold or machined on the cast mold. The difference in the degree of surface treatment not only has a great impact on the mold cost, but sometimes a specific surface treatment will affect the demolding of the product.

4. Is there an area between the two walls on the rotomolded products where the resin does not flow well? How long is the distance of this area? If the distance is long, the surface treatment of the mold here will be difficult and increase the cost. If it is narrow, it is difficult or even impossible for the resin to flow into the cavity.

5. Is the fillet in the design large enough to allow the resin to flow freely to every part of the mold. What is the sufficient fillet radius?

6. Are inserts used to attach other parts to the plastic product? How are the inserts positioned and can they remain in place during the molding operation?

7. Where is the parting surface of the mold? Sometimes the aesthetic needs of the product and the actual requirements of mold making will differ in the parting surface issue.

8. If the compressive strength of the product wall is required to be high, should the product be designed with reinforcing ribs or "kiss-type" structures?

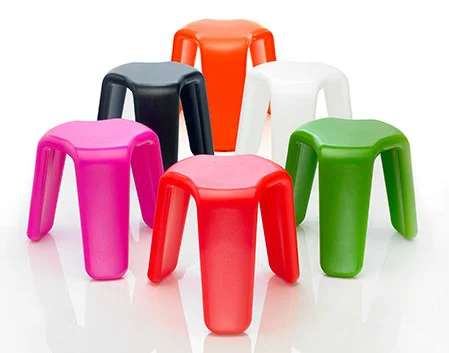

Rotomolding Design: Crafting the Perfect Rotomolded Chair

Rotational molding design is an art that requires a deep understanding of the material and process. When designing a rotomolded chair, one must consider ergonomics, aesthetics, and functionality. The chair should be comfortable, visually appealing, and durable. The design should incorporate smooth curves and rounded edges to enhance user comfort. Additionally, the material selection is critical; it should be UV-resistant and capable of withstanding outdoor conditions. By focusing on these aspects, designers can create a chair that not only looks good but also performs exceptionally well in various environments.

Rotational Molding Design Guidelines: A Data-Driven Approach

Data plays a crucial role in rotational molding design. For instance, maintaining a uniform wall thickness of 3-5 mm can significantly enhance the structural integrity of a small plastic climbing frame. Draft angles of 1-3 degrees facilitate easy removal of the part from the mold, reducing the risk of damage. Ribs and bosses, strategically placed, can add up to 30% more strength to the final product. Proper venting ensures a smooth finish, free from air pockets. By leveraging data, manufacturers can optimize their designs for better performance and durability.

Rotational Molding vs. Other Methods

When comparing to other manufacturing methods, the rotational molding advantages become clear. Rotational molding offers unparalleled flexibility in design, allowing for the creation of complex shapes and sizes. Unlike injection molding, which requires high-pressure equipment, rotomolding uses low-pressure, making it more cost-effective for producing large parts like roto molded furniture. Additionally, the process is ideal for creating hollow parts, such as a molded speaker box, without the need for secondary operations. In contrast, other methods may require additional steps, increasing production time and costs. By choosing rotational molding, manufacturers can achieve high-quality results with greater efficiency and lower costs.

The Future of Rotational Molding – Innovations and Trends

The rotational molding industry is continuously evolving, with new innovations and trends shaping its future. One significant trend is the increasing demand for eco-friendly materials, as businesses strive to reduce their environmental footprint. Another trend is the integration of advanced technologies, such as automation and real-time monitoring, to enhance production efficiency and quality control. Additionally, the rise of customized solutions is enabling manufacturers to meet specific client needs more effectively. As the industry advances, staying abreast of these trends will be crucial for B2B buyers looking to make informed procurement decisions.

In conclusion, understanding and applying the principles of rotational molding design can significantly enhance the quality and performance of the final product. Whether it’s a rotomolded chair, a small plastic climbing frame, or a molded speaker box, the right design approach can make all the difference.
